Autoreel’s comprehensive range of linear measuring meters to complement our programme of cable winding systems. The range is designed to cover all reel form materials including electrical cable, telephone cable, hose, wire, extrusions, covered and uncovered wire rope, fibre rope etc. The meters are fitted with a standard preset counter measuring in meters and tenths from 0 to 9999.9m. However these can be optionally replaced with other meters for measuring in ft/in, fathoms etc. In addition a range of electronic and preset meters are available to suit individual requirements.

• Knurled aluminium or steel measuring wheels.



• Standard counter measuring in meters from 0 to 9999.9.



OPTIONAL EXTRAS AVAILABLE



• Electronic counters.



• Single or double preset counters.



• Rubber coated wheel.



• Counters to measure in other units.



The range is designed to cover all reel form materials including electrical cable, telephone cable, hose, wire, extrusions, covered and uncovered wire rope, fiber rope etc.

TECHNICAL INFORMATION

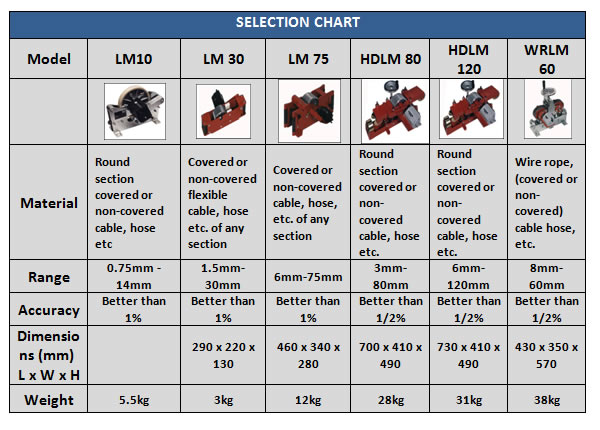

LM - LINEAR MEASURING METERS TECHNICAL SPECIFICATION

LM – LINEAR MEASURING METERS TECHNICAL SPECIFICATION
