CJ – Cable Drum Jacks

Autoreel’s Cable Drum Jacks are a simple efficient and cost effective method of enabling the payout of cable from large capacity drums..

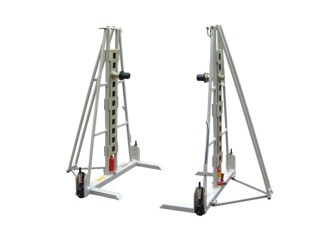

CJ - Cable Drum Jacks

Cable Drum Jacks comprise of multi-position sliding carriage within a vertical guide mounted on a hydraulically operated lifting jack, all of which is supported by a robust, triangular based frame.

To operate simply insert the drum support shaft through the drum ensuring that the spacers are in position. Roll the drum up to the Cable Drum Jacks and adjust the hook to a suitable position on the sliding carriage. Then by operating the hydraulic rams the Drum is raised clear of the ground and free to rotate. This operation can be carried out quickly and safely by only one man. By tilting the Jacks onto their wheels they become easily portable around the working area.

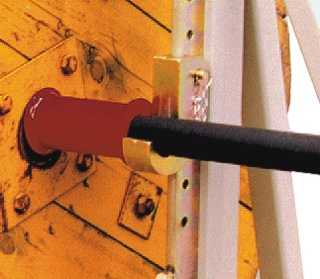

Cable Drum Jack Closeup

STANDARD FEATURES

Drum axle to suit required drum weight and capacity.
Spacers to prevent the cable running into the Drum Jacks.
Jack handles to operate hydraulic arms.
Safe working load Test Certificate.
Cable Drum Jacks are available in a collapsible version. Add ‘C’ to model number when ordering (i.e. CJ6000C)

NEW - Pintle Jacks for Cable Drums

Technical Information

Please review the information below for specific technical information.

  • CJ3000
  • Max Drum Diameter
    2400mm
  • Max Drum Weight
    3000Kg
  • Machine Depth
    720mm
  • Machine Height
    1450mm
  • Machine Width
    800mm
  • Machine Weight
    161Kg
  • CJ6000
  • Max Drum Diameter
    2900mm
  • Max Drum Weight
    6000Kg
  • Machine Depth
    830mm
  • Machine Height
    1680mm
  • Machine Width
    900mm
  • Machine Weight
    205Kg
  • CJ10000
  • Max Drum Diameter
    3500mm
  • Max Drum Weight
    10000Kg
  • Machine Depth
    950mm
  • Machine Height
    1970mm
  • Machine Width
    1050mm
  • Machine Weight
    235Kg
