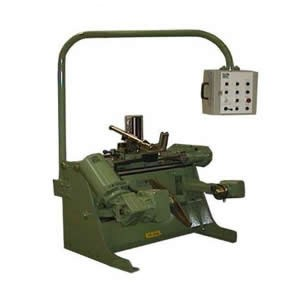

PLWX – Production Cantilever, Pintle Loading Take up and Payoff

Autoreel’s PLWX range of shaftless, pintle loading take-ups and payoffs feature Autoreel’s unique, patented pantograph, loading system for the ultimate in fast drum changing..

PLWX - Production Cantilever, Pintle Loading Take up and Payoff

Modular in design the units can be adapted to suit most production applications. The options include air operated, constant tension dancers, automatic cable layering, on-line measuring, coiling heads etc. Different size pintles and drive attachments are easily and quickly changed to suit varying types and sizes of wooden, steel, plywood etc drums.

PLWX - Production Cantilever

STANDARD FEATURES

Powered by an infinitely, variable speed motor.
Hydraulically operated drum loading.
Pintles to suit a wide range of drum bores.
Various drum driving attachments.
Operation and maintenance handbook.

OPTIONAL EXTRAS AVAILABLE

A variety of linear measuring meters.
Collapsible coiling heads.
Electrical motor driven manoeuvring carriage.
Personnel safety guards.
Cable cutting attachments.
Automatic layering.
Dancer arm control

Technical Information

Please review the information below for specific technical information.

  • PLWX350
    PLPX350
  • Max Drum Diameter
    800mm
  • Min Drum Diameter
    300mm
  • Max Drum Width
    500mm
  • Max Drum Weight
    350Kg
  • PLWX500
    PLPX500
  • Max Drum Diameter
    1000mm
  • Min Drum Diameter
    300mm
  • Max Drum Width
    700mm
  • Max Drum Weight
    500Kg
  • PLWX1000
    PLPX1000
  • Max Drum Diameter
    1250mm
  • Min Drum Diameter
    400mm
  • Max Drum Width
    850mm
  • Max Drum Weight
    1000Kg
  • PLWX2000
    PLPX2000
  • Max Drum Diameter
    1600mm
  • Min Drum Diameter
    300mm
  • Max Drum Width
    1000mm
  • Max Drum Weight
    2000Kg
