GWS – GANTRY TAKE-UP & PAYOFF

Autoreel’s range of Gantry style Take-ups and Payoffs has been specifically developed for use on process lines and heavy duty dispatch applications where the requirement is for an efficient system with a high duty rating.

GANTRY TAKE-UPS AND PAYOFFS

Autoreel’s GWS range consists of pay-offs and take-ups, which come in a variety of sizes and types. We can also fit client-specified motors, gearboxes and drives. The three frame designs are:

Fixed – These are the standard units either take-up or pay-off (powered and un-powered).

Wide Gantry – These units have a wider gantry with the facility to move the drum within the frame. This allows for automatic drum layering for the take-ups that maintains the product in a straight line as it is reeled onto the drum. The pay-offs are fitted with automatic de-traversing which has the reverse effect.

Moving Gantry – These machine are the same width as the fixed units but are mounted on rails. This allows for lateral movement giving automatic traversing and de-traversing.

The GWS series of Take-up and Payoff units are available in four standard sizes, 4000, 6000, 10,000 and 20,000kg, other sizes are available to special order. The unique modular design and wide range of options allows them to be easily tailored to suit any application. A feature of the GWS range is it’s open design allowing ease of access around the drum. One of the standard modules is the motorised maneuvering carriage, when fitted the machines become fully mobile with the versatility and variety of movement to efficiently pick up even the most awkwardly placed drums. This option also allows the machines to be moved around the working area.

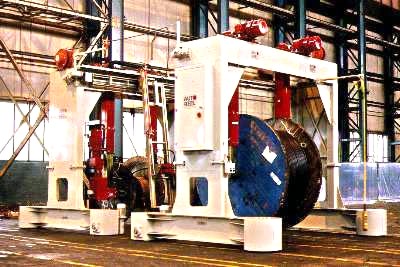

GWS Gantry Take-up and Payoff Autoreel Cable Winding Machine In Situ

STANDARD FEATURES

Powered by variable speed, forward/reverse motor (take-up)
Electrically operated drum loading with independent pintles
Range of detachable drum adapters
Various drum drive plates
Finished in Autoreel Grey or colour of your choice

OPTIONAL EXTRAS AVAILABLE

Motorised machine movement
Automatic cable layering
Wide gantry version
Tension controlled, drive motor
Dancer arms and accumulators
Air operated disk brakes
Cable cutting devices
Cable measuring meters
Integrated control for synchronised operation
Variable height personnel platform

TECHNICAL INFORMATION

TECHNICAL INFORMATION

Please review the information below for specific technical information.

  • GWS 4000
    GPS 4000
  • Max Drum Diameter
    2200mm
  • Max Drum Width
    1275mm
  • Max Drum Weight
    4000Kg
  • Machine Depth
    2850mm
  • Machine Height
    2800mm
  • Machine Width
    2650mm
  • GWS 6000
    GPS 6000
  • Max Drum Diameter
    2400mm
  • Max Drum Width
    1350mm
  • Max Drum Weight
    6000Kg
  • Machine Depth
    2980mm
  • Machine Height
    3080mm
  • Machine Width
    2800mm
  • GWS 10,000
    GPS 10,000
  • Max Drum Diameter
    3000mm
  • Max Drum Width
    1900mm
  • Max Drum Weight
    10,000Kg
  • Machine Depth
    3200mm
  • Machine Height
    3700mm
  • Machine Width
    3400mm
  • GWS 20,000
    GPS 20,000
  • Max Drum Diameter
    3500mm
  • Max Drum Width
    2200mm
  • Max Drum Weight
    20,000Kg
  • Machine Depth
    3600mm
  • Machine Height
    4300mm
  • Machine Width
    3950mm
